Cleaning Grille Screens, Radiator and Oil Cooler

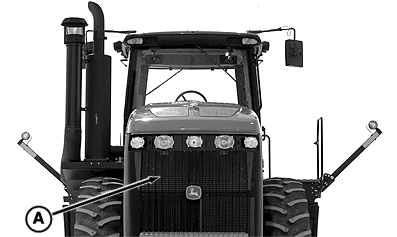

Stop engine and clean screen (A) using a brush.

Clean trash from engine compartment shields.

A-Screen

RW29387,0000377 -19-04SEP08-1/2

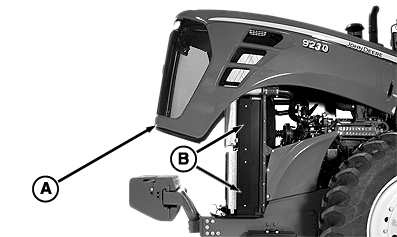

Raise hood (A) and remove radiator side panels (B). Clean radiator, oil cooler, condenser and aftercooler.

CAUTION: Compressed air pressure should not exceed 75 psi (500 kPa) (5 bar) when used for cleaning. Clear area of bystanders, guard against flying chips and wear personal protection equipment including eye protection.

Clean radiator, oil cooler, condenser, and aftercooler from behind with compressed air if a more thorough cleaning is necessary. Straighten any bent fins.

Reinstall side panels (B) before closing hood.
