Inspect and Clean Fuel Sump Screen

NOTE: The fuel sump screen should not require service unless fuel supply is disrupted due to contaminates in tank.

CAUTION: Fuel tanks must be completely drained before removing sump screen.

IMPORTANT: If adaptor is removed, clamp should only be loosened slightly. If clamp is removed plastic boss could relax making it difficult to reinstall adaptor. Adaptor has a pipe thread which seals with fuel tank. Apply LOCTITE ® 30558 to adaptor prior to reinstalling in tank.

1. Disconnect sump hose and remove adaptor and screen (A) from threaded boss on crossover tank (B).

2. Clean or replace as necessary.

3. Apply Loctite 30558 to adaptor threads and install adaptor and screen in threaded boss in crossover pipe.

4. Reconnect sump hose.

5. Tighten clamp.

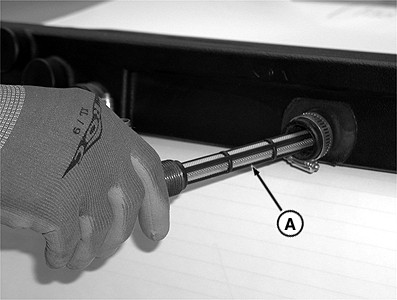

A-Sump Screen

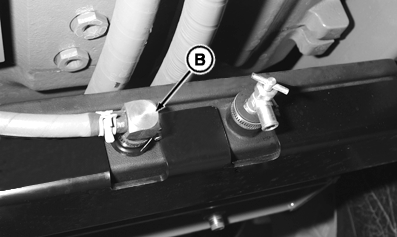

B-Crossover Tank

LOCTITE is a trademark of Loctite Corp.

RW29387,0000378 -19-09AUG06-1/1
