Drive Belt Routing

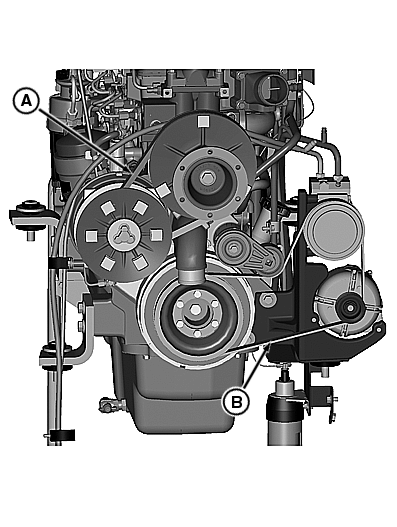

RXA0096483

Drive Belt-9.0 L Engine

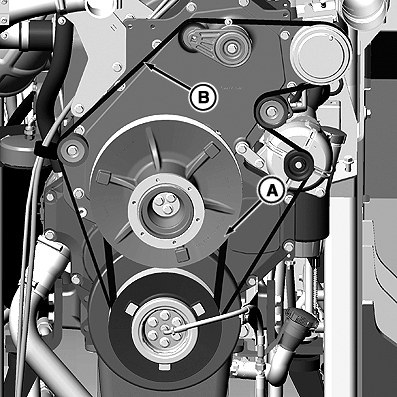

RXA0091223

Drive Belt-13.5 L Engine

A-Vari-Cool Fan Belt

B-Accessory Drive Belt

RW29387,000037B -19-10SEP08-1/1
