CAUTION:
Reduce compressed air to less than 30 psi (210 kPa) (2 bar) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protective equipment including eye protection.
SERVICE INTERVAL - 750 HOURS *
* Interval can vary according to operating conditions

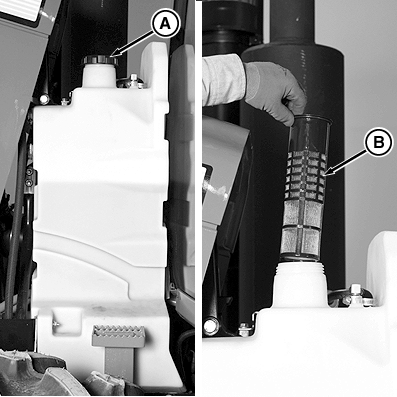

Remove hydraulic reservoir cap (A) and inspect screen (B). Clean screen in solvent and blow dry.
CAUTION:
Reduce compressed air to less than 30 psi (210 kPa) (2 bar) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protective equipment including eye protection.
