Lubricating Hinge Pins-Heavy-Duty Gudgeon With Tapered Roller Bearings

CAUTION: Stop engine and remove key before working in hinge area.

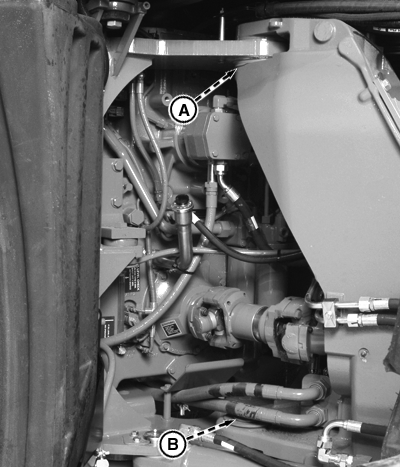

Lubricate upper (A) and lower (B) hinge pins with John Deere HD grease specified in Fuels, Lubricants and Coolant Section.

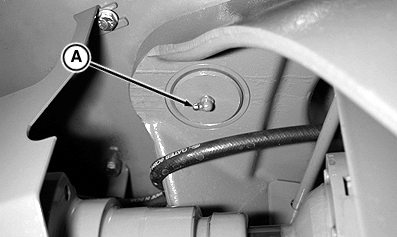

A-Upper Hinge Pin

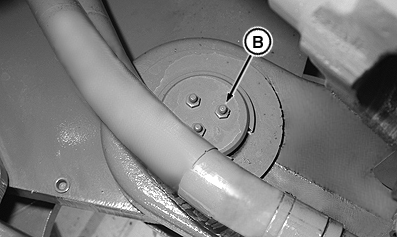

B-Lower Hinge Pin
