Lubricating Steering Pin Bushings-If Equipped

SERVICE INTERVAL - DAILY OR 10 HOURS



causym CAUTION: Stop engine and remove key before working in hinge area.

Lubricate left front (A) and rear (B), right front (C) and rear (D) steering pin bushings with John Deere HD grease specified in Fuels, Lubricants and Coolant Section.


A-Left Front Pin
B-Left Rear Pin
C-Right Front Pin
D-Right Rear Pin

RXA0090384

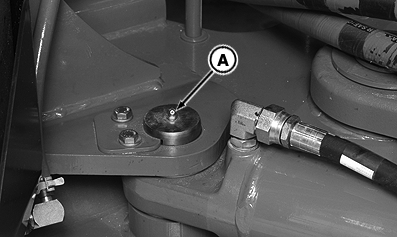

Left Front Steering Pin

RXA0090382

Left Rear Steering Pin

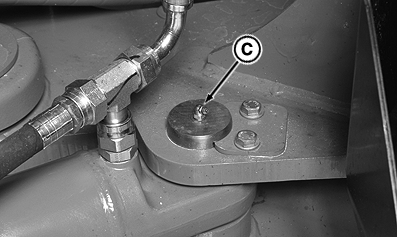

RXA0090386

Right Front Steering Pin

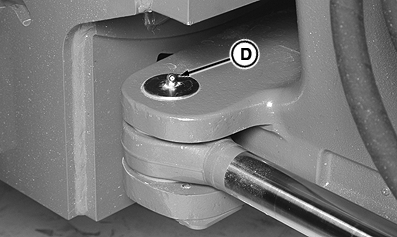

RXA0090388

Right Rear Steering Pin
