Lubricating Lift Cylinders and Rockshaft

SERVICE INTERVAL - DAILY OR 10 HOURS



Lubricate lift cylinder pins (A) each side and left and right side rockshaft (B) and (C) for every 10 hours of hitch operation.

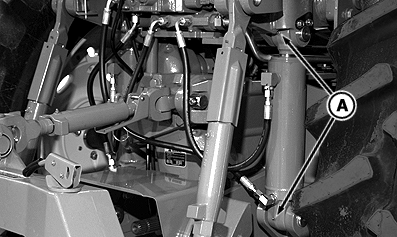

A-Lift Cylinder Pins
B-Rockshaft (Right Side Lubrication Fitting)
C-Rockshaft (Left Side Lubrication Fitting)

RXA0090426
RXA0090428

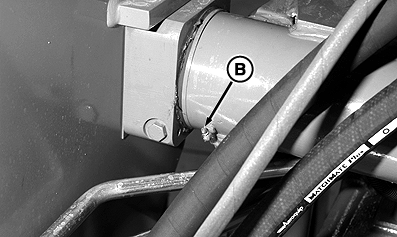

Right Side Rockshaft Assembly (Front View)

RXA0090430

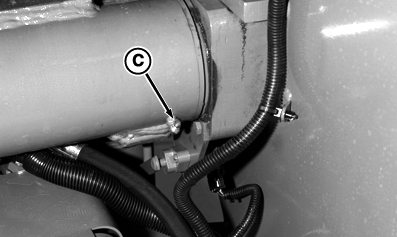

Left Side Rockshaft Assembly (Front View)

RW29387,0000393 -19-08SEP08-1/1
