Lubricating Hitch Sensor

SERVICE INTERVAL - ANNUALLY *

* 250 Hours if operated in extremely wet conditions



Lubricate the hitch sensor (A), located on left side draft link support, every 250 hours, if operated in extremely wet conditions. 1 Lubricate until all air is forced through the grommet.

Use John Deere HD Grease.

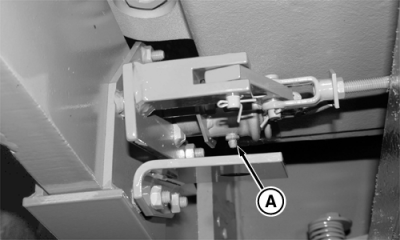

A-Hitch Sensor

RXA0052060

1Under normal conditions, lubricate sensor annually.

RW29387,0000394 -19-06DEC05-1/1
