Replacing Fuses and Relays

Open rear window.

Lift up and remove rear cover (A) to access fuse and relay panel (B).

IMPORTANT: Fuse replacement must be the same rating as the original.

See your John Deere Dealer for replacement fuses and relays.

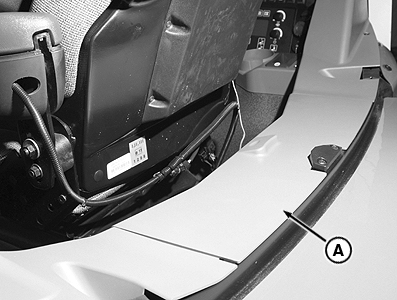

A-Rear Cover

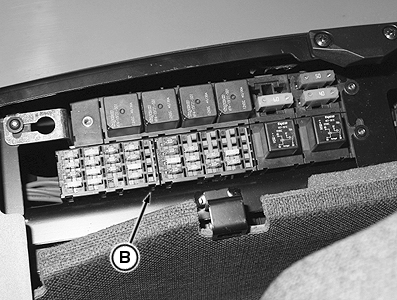

B-Relay Panel

RXA0086519
RXA0086521

RW29387,00003D3 -19-27OCT06-1/1
