Replacing Roof Flood Lights-If Equipped

Remove light boot retaining tie band.

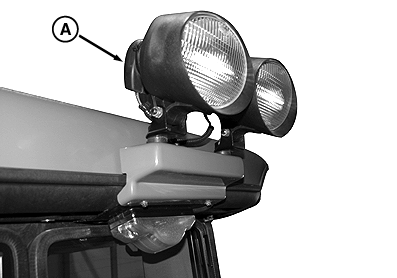

Twist and pull out bulb plug from back of light housing. Unplug bulb from light harness (A).

Install light assembly in reverse order of removal.

A-Light Harness
