IMPORTANT:
AutoTrac is
NOT
approved for scraper applications. AutoTrac can be installed on scraper tractors for use in agricultural applications.
Refer to AutoTrac Operator's Manual for detailed instructions.
-
AutoTrac system utilizes StarFire position receiver (A) and GreenStar display (B), (C) or (D) to assist operator in steering tractor.
-
AutoTrac steers the vehicle on operator-defined paths through the field. Operator must turn vehicle at the end of each pass and to go around any field obstacles. Steering control is obtained by simply turning steering wheel.

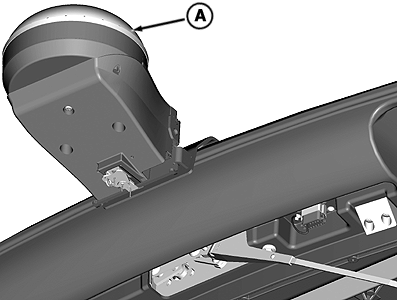

A-Position Receiver

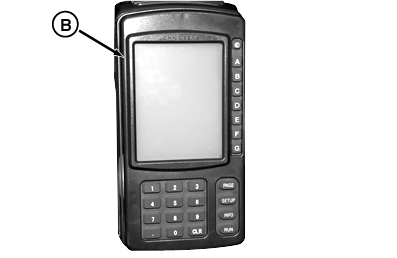

B-GSD4 Display / Mobile Processor

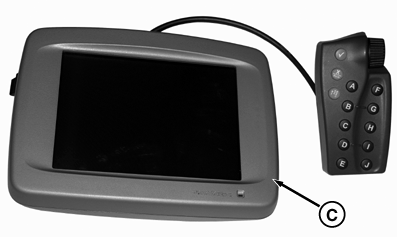

C-GSD 2100 Display

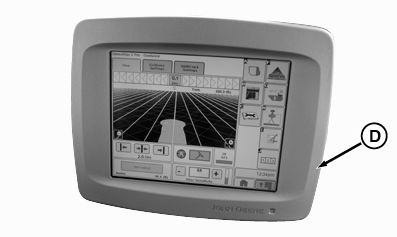

D-GSD 2600 Display
|
GSD 2100 Display
GSD 2600 Display
|
