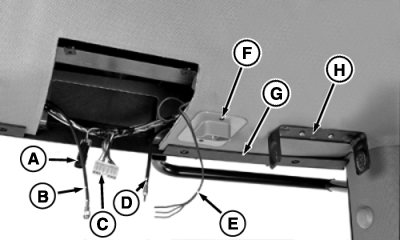

A-Rotary Beacon Connector
B-Mobile Radio Antenna

C-AM/FM Connector
D-AM/FM Antenna

E-Mobile Radio Power Leads
F-Console Light

G-Roof Trim
H-Mobile Radio Bracket

CAUTION: Under no circumstances should mobile radio antenna be mounted to rear of cab or antenna cable be routed near harness for electrical system controllers or operator controls. Failure to follow these precautions could expose operator to radio frequency energy levels higher than recommended by American National Standards Institute (ANSI) and/or could cause undesirable performance of electronically controlled systems.

IMPORTANT: Avoid possible interference of tractor electronics by keeping radio, power and antenna cables close to the cab roof.

CAUTION: Prevent possible personal injury. Disconnect battery ground cable before any electrical repair.

NOTE: Only tractors ordered mobile radio ready from factory have mounting plate, antenna cable, and antenna included. For tractors not ordered mobile radio ready, see your John Deere

dealer. For tractors that are mobile radio ready, follow installation steps below.

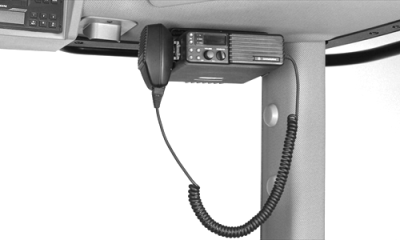

Remove existing entertainment radio bezel to gain access to power leads (E) and antenna cable (B).

Power leads are pre-installed, locate red wire #272 for switch operation. Should radio operation require battery power at all times, use red wire #262. Black wire is mobile radio ground.

Connect antenna cable to radio. Remove rain cap on outer roof and attach non-ground plane type antenna to the mount. Antenna mount is 1-1/8 in. - 24 thread. The cable connector for radio is a PL259 type. Adapters are available through radio equipment suppliers.

NOTE: Antenna should be trimmed to appropriate variable standing wave ratio (VSWR). A professional installer is recommended.

Install the radio bezel after the mobile radio cable and wires are routed.

RW29387,00004D5 -19-24MAR09-1/1
