Operating Rear Windshield Wiper and Washer-If Equipped

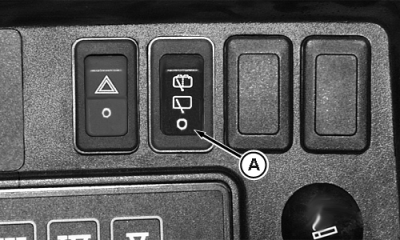

Wiper/washer switch (A) has three positions:

  • Off
  • On
  • Wash

Push switch in to operate optional windshield washer.

Fill reservoir (B) with non-freezing windshield washer fluid. Reservoir is located on left frame, near cab platform.

NOTE: Windshield washer nozzles can be adjusted by inserting a small pin into nozzle opening and rotate to desired position.


A-Wiper/Washer Switch
B-Washer Fluid Reservoir

RW26207
RXA0094305

RW29387,00004D6 -19-26OCT07-1/1
