Using Hydraulic Trailer Brakes (If Equipped)

CAUTION: Avoid possible injury from losing control of tractor when operating on downhill slopes. Tractor wheels may lock and skid on steep or slippery downhill slopes.

Remove cap from trailer brake coupler (A). Connect pressure hose to brake coupler, making sure hose end and coupler are clean.

Depress brake pedals to operate hydraulic trailer brake. The braking effect depends on pressure applied to the brake pedals.

Hydraulic trailer brakes can be equipped for use with power beyond coupler (B).

IMPORTANT: Recommendations to reduce brake wear:

• Make sure the pressure hose is connected.

• Select the same gear for both downhill and uphill driving.

• Check the hydraulic trailer brake regularly for proper operation.

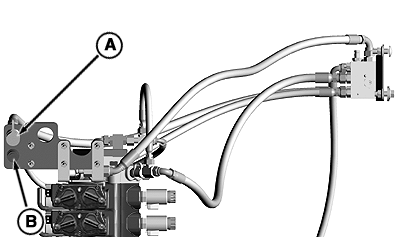

A-Trailer Brake Coupler
B-Power Beyond Coupler
