Installing Clevis Assembly-Category 5 Drawbar

Clevis assembly (A) must be attached only to the top of the drawbar.

Tighten two center M24 cap screws (B) and four outer cap screws (C) to specification.

M24 Clevis Cap Screws (B) - Specification

Cap Screw -Torque 750 N·m (553 lb-ft)

M24 Clevis Cap Screws (B)M20 Clevis Cap Screws (C) - Specification

Cap Screw -Torque 610 N·m (450 lb-ft)

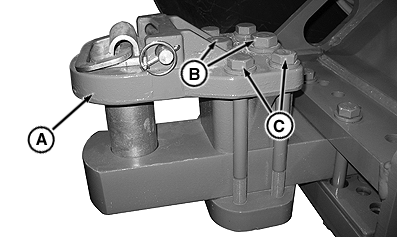

RXA0094074


A-Clevis Assembly
B-M24 Cap Screws
C-M20 Cap Screws

RW29387,00004F4 -19-08SEP08-1/1
