Replacing Road Light Bulb

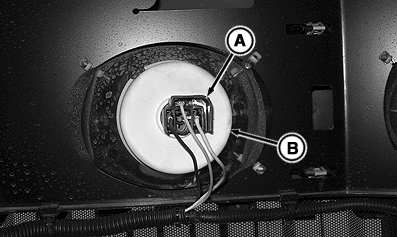

2. Disconnect wiring harness plug (A).

3. Remove dust boot (B).

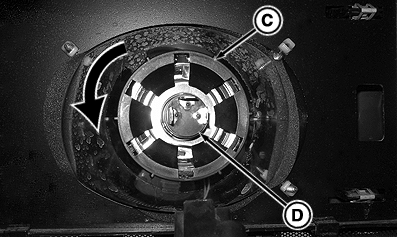

4. Turn retaining ring (C) counterclockwise approximately 1/4 turn and remove bulb assembly (D).

5. Install new bulb assembly in reverse order of removal.

6. Adjust headlights, if necessary. (See ADJUSTING FRONT GRILLE LIGHTS this Section for correct aiming procedure.)

A-Wiring Harness Plug
B-Dust Boot
C-Retaining Ring

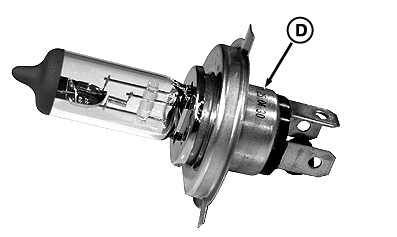

D-Bulb Assembly

RW29387,00004F9 -19-04SEP08-1/1
