Adjusting Front Grille Lights |
|
|
|
1.

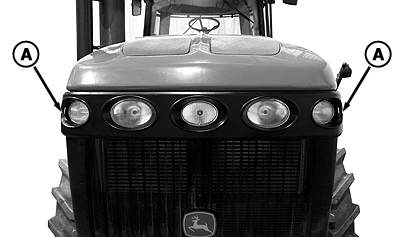

To remove bezel, place one hand on each side of bezel (A) and pull straight back.

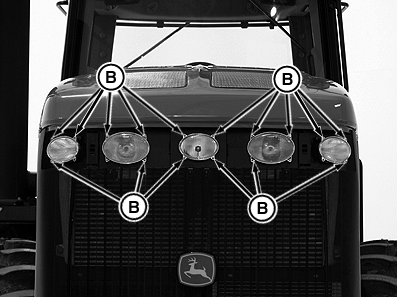

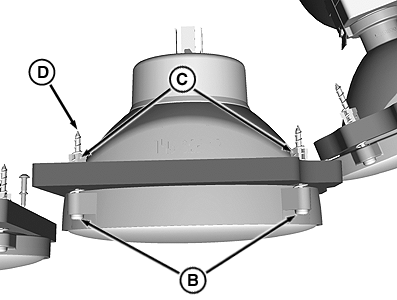

2. Adjust the light beam by turning aiming screws (B) to move headlights up or down and from side-to-side. 3. To return light to factory setting, adjust cap screws so the screw tips (D) are flush with plastic retainers (C), then adjust light beams from there. See ADJUSTING HEADLIGHTS, this Section for correct aiming procedure.
|
|
RW29387,00004FA -19-16MAY07-1/1 |
