Inspect Drawbar Support Cap Screws
|
|
|

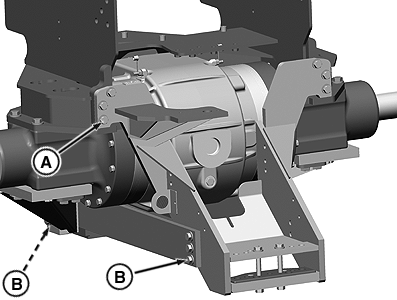

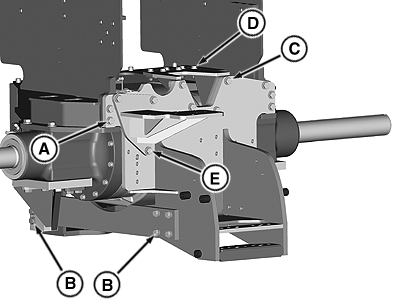

Inspect and tighten drawbar Support Cap Screws as required. |
| Drawbar Support Cap Screw Torque Specifications | |
|---|---|
| Drawbar Support Cap Screws to Frame (A) | 610 N·m (450 lb-ft) |
| Support Stabilizer Cap Screws to Drawbar Support (B) | 610 N·m (450 lb-ft) |
| Centerlink Support Cap Screws to Drawbar Support (C) | 610 N·m (450 lb-ft) |
| Centerlink Support Cap Screws to Frame (D) | 310 N·m (230 lb-ft) |
| SCV Bracket Cap Screws to Drawbar Support (E) | 610 N·m (450 lb-ft) |
| SCV Stack Cap Screws to SCV Bracket (Not Shown) | 125 N·m (92 lb-ft) |
| SCV Line Clamp Screw (Not Shown) | 30 N·m (22 lb-ft) |
