Replacing Cab Air Filters

SERVICE INTERVAL -

REPLACE - ANNUALLY

* Interval can vary according to operating conditions



causym CAUTION: The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.

Recirculation Filter

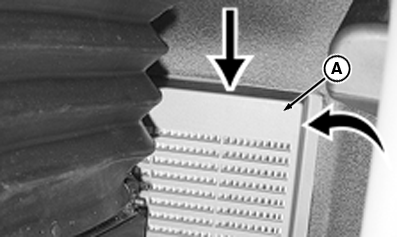

Push down and forward filter cover (A) to remove from behind the seat.

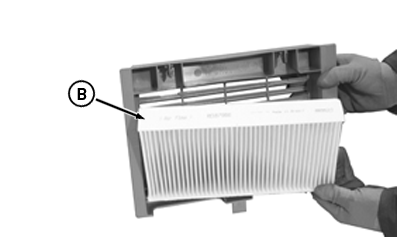

Remove air filter (B).

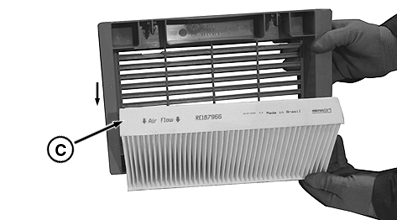

Install new filter with Air Flow (C) arrows toward rear of cab.


A-Filter Cover
B-Recirculation Air Filter
C-Air Flow Direction

RXA0086493
RXA0086497
RXA0086507

OU1092A,000024B -19-04SEP08-1/2

Cab Air Filter

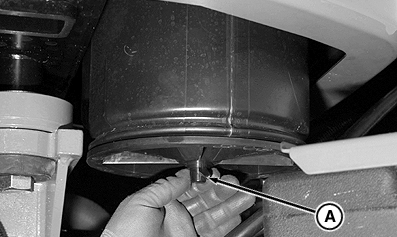

Remove wing nut (A) and filter cover.

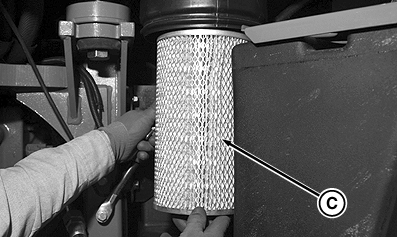

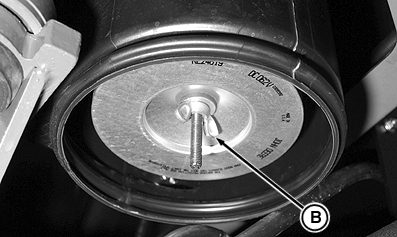

Remove wing nut (B) and air filter (C).

Install new filter and tighten wing nut.

Install filter cover.


A-Cover Wing Nut
B-Filter Wing Nut
C-Air Filter

RXA0086673
RXA0086675
RXA0086679

OU1092A,000024B -19-04SEP08-2/2
