Clean Fuel Tank Vent Filter

NOTE: Fuel tanks are vented through a fuel vent filter (C) located behind right side cab panel.

Remove rear cab panel.

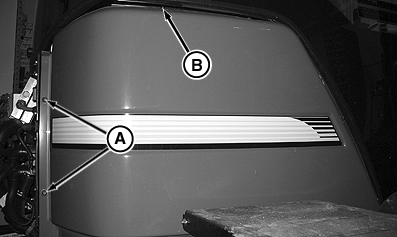

Loosen right rear cab panel screws (A).

Remove top cab panel retaining screws (B).

Open up front of cab panel to access tank vent filter (C).

Unscrew to remove vent filter and clean in soapy detergent solution.

Blow dry with compressed air and replace.

Reinstall side panel retaining screws and rear cab panel.

A-Screws
B-Screws
C-Vent Filter

RW29387,0000008 -19-23MAY07-1/1
