Back-Up Alarm-If Equipped

causym CAUTION: The back-up alarm emits an audible sound to alert anyone near by; the tractor will be traveling in a reverse direction.

NOTE: The back-up alarm (B) is located on the rear cross member.

Back-up alarm will sound when key switch is ON and transmission is in reverse gear (A).

Alarm can be set at three different volume levels:

  • high
  • low
  • medium

Set sound level switch (C) on back of alarm to desired setting.


A-Reverse Gear Lever
B-Back-Up Alarm
C-Volume Control

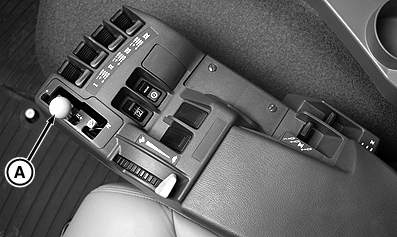

RXA0094749

Powershift Transmission

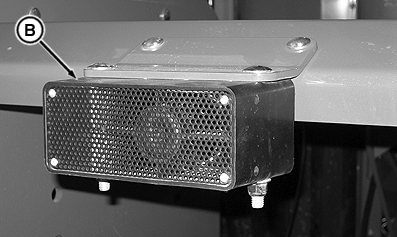

RXA0094745

Back-Up Alarm

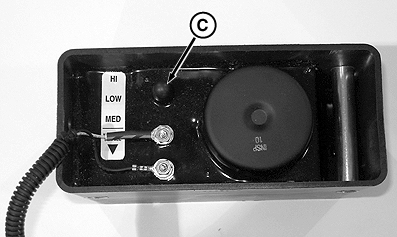

RXA0094744

Volume Control-Rear View

RW29387,0000044 -19-05JUL07-1/1
