Replacing Transmission/Axle Oil Filters-18-Speed Powershift Transmission

SERVICE INTERVAL -

INITIAL - 100 HOURS
SCHEDULED - 750 HOURS *

* Interval can vary according to operating conditions



NOTE: The powershift transmission only needs to be recalibrated if transmission shift characteristics change after transmission oil and filter change. See Transmission Calibration procedure in this Section.

A drain pan is recommended for 1.9 L (2 qts) oil spillage when changing the transmission oil filter.

Tractors with standard axles only have a transmission oil filter (A).

Tractors with double reduction axles have both a transmission (A) and axle oil filter (B).

Remove transmission oil filter (A) and axle oil filter (B), if equipped.

Install new filter(s) and tighten one-half turn after gasket contacts filter housing base.

Check transmission oil level and fill as required using HY-GARD JDM J20C Oil ONLY.

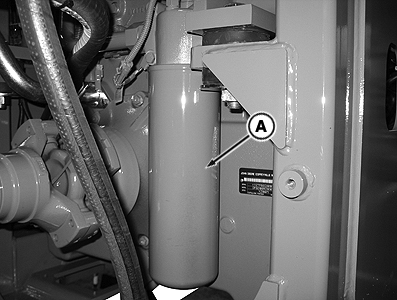

RXA0099352

9330, 9430 Standard Axle Tractors

RXA0099354

9530, 9630 Double Reduction Axle Tractors


A-Powershift Transmission Oil Filter
B-Double Reduction Axle Oil Filter

RW29387,0000072 -19-02OCT08-1/1
