Wheel Weight Holding Wrench-JDG10958

The JDG10958 Holding Wrench can be used when multiple inner and outer wheel weights are stacked on the tractor wheel.

The Holding Wrench is designed to hold M20 wheel weight cap screws in limited access areas while tightening cap screws to specified torque per Tractor Operator's Manual.

The wrench is available from your John Deere Dealer.

Specification

Wheel Weight Cap Screws -Torque 610 N·m (450 lb-ft)

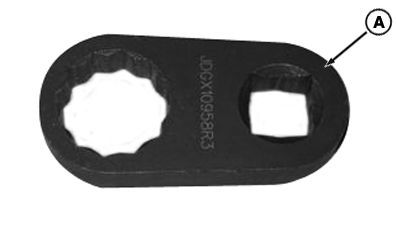

A-JDG10958 Wheel Weight Holding Wrench

RXA0100328

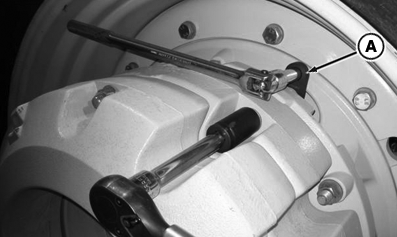

JDG10958 Wheel Weight Holding Wrench

RXA0100329

Outer Wheel Weight

RXA0100330

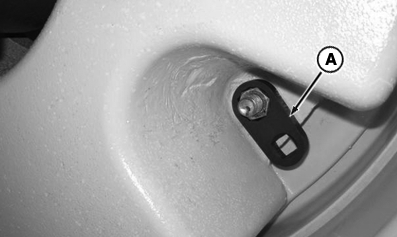

Inner Wheel Weight

RW29387,00000CE -19-12MAR09-1/1
