Checking Transmission/Axle Oil Level-Powershift Transmission Tractors

SERVICE INTERVAL - 250 HOURS



IMPORTANT:

a. Poor shift quality and/or transmission damage may occur if the HY-GARD or JDM J20C specifications are not followed. To ensure proper shift quality, an oil meeting HY-GARD or JDM J20C specifications must be used.
b. Do not operate tractor if oil is not above mark (C) in sight gauge with engine off.

PROCEDURE:

NOTE: Do not perform oil check within eight hours of transporting tractor in 15th or higher gear.

1. Start tractor engine and warm transmission/axle oil to above 35°C (95°F). Use CommandCenter display to check transmission/axle temperature. (See CommandCenter SECTION).

2. After oil is at desired temperature, drive to a level surface.

3. Shift transmission lever to Park, set engine speed at 1200 rpm and run for 3 minutes.

NOTE: DO NOT step on brake pedal during this segment of the procedure to avoid additional oil flow to the axles and resulting in an inaccurate oil level check.

4. Reduce engine speed to slow idle, shut engine OFF, and wait 5 minutes.

5. Check oil level on sight gauge on rear of transmission. Oil level should be between marks (A) and (B).


A-Top Oil Level Mark
B-Lower Oil Level Mark
C-Low Level Mark

RXA0099427

Three Line Powershift Transmission Sight Gauge/Labels (Early Version)

RXA0100860

Three Line Powershift Transmission Sight Gauge/Labels (Late Version)

RXA0100692

Two Line Powershift Transmission Sight Gauge and Labels

RXA0100424

CommandCenter Transmission/Axle Oil Temperature Display

RW29387,00000E8 -19-07MAR09-1/2

TROUBLESHOOTING:

Transmission Oil Overheats
  • Drain out approximately 3.8 L (1 gal.) of oil.
  • If oil level needs to be drained/lowered, slightly loosen the sump screen cover (E) cap screws. 1

    NOTE: To drain oil, do not remove sump cover. Slightly loosen cap screws to begin draining process.

    Ensure O-ring remains in place on sump screen cover.

  • Tighten sump cover cap screws when completed to specification.

Specification

Sump Screen Cover Cap Screws -Torque 55 N·m (40 lb-ft)

  • Complete oil check PROCEDURE steps 1-5 eight hours later without additional transport or the next day.
Transmission Oil Pressure Low Warning
  • Complete oil check PROCEDURE steps 1-5.
  • If transported within last eight hours, add 3.8 L (1 gal.) oil. Complete the oil check PROCEDURE eight hours later without additional transport or the next day.

    NOTE: If warning code continues to appear, contact your John Deere Dealer.

Continuous Side Slope Operation

If tractor is operating on continuous side slopes over 10 degrees, additional oil must be added. Add oil using fill tube (D). Oil level must be between mark (A) to 25.4 mm (1 in.) above mark (A).


A-Top Oil Level Mark
B-Lower Oil Level Mark
C-Low Level Mark
D-Transmission Fill Tube
E-Sump Screen Cover

RXA0100860

Three Line Powershift Transmission Sight Gauge and Labels

RXA0100692

Two Line Powershift Sight Gauge and Labels

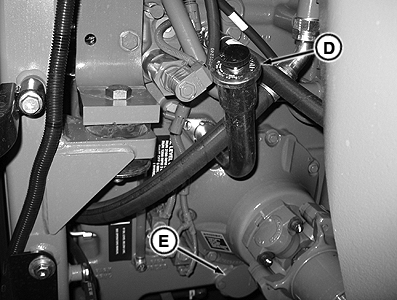

RXA0100691

Powershift Transmission

1Reference Tip - 1 gallon of oil is equivalent to approximately 25.4 mm (1 in.) on sight gauge.

RW29387,00000E8 -19-07MAR09-2/2
