Changing Powershift Transmission/Double Reduction Axle Oil--9530 and 9630 Tractors

SERVICE INTERVAL - 1500 HOURS



IMPORTANT: Prevent premature axle failure. Carefully follow drain and fill procedure.

NOTE: The powershift transmission only needs to be recalibrated if transmission shift characteristics change after transmission oil and filter change. See Powershift Transmission Calibration procedure in General Maintenance and Inspection Section.

1. Park tractor on level ground and shut engine OFF. Allow oil to cool for five minutes.

2. Remove plug (A) from bottom of transmission.

3. Remove front drawbar retaining pin (B) and pull drawbar (C) rearward to access rear axle drain plug (D).

4. Remove front axle drain plug (E) and drain oil.

5. Install all drain plugs.

6. Change transmission oil filter. (See Replacing Transmission/Axle Oil Filter- 18-Speed Powershift Transmission in this Section.)


A-Transmission Drain Plug
B-Front Drawbar Pin
C-Drawbar
D-Rear Axle Drain Plug
E-Front Axle Drain Plug

RXA0052015

Powershift Transmission Drain Plug

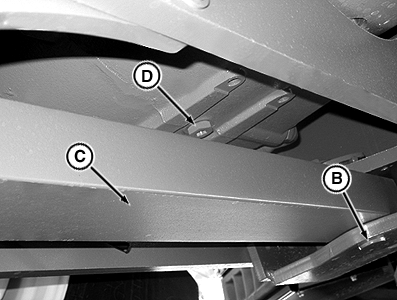

RXA0096574

Rear Axle Drain Plug

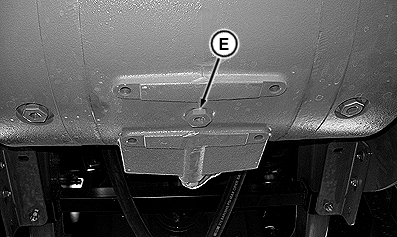

RXA0096650

Front Axle Drain Plug

RW29387,00000FE -19-06MAR09-1/3

7. Remove sump screen cover (B) cap screws. Remove sump screen and clean with solvent.

8. Inspect for debris in sump screen cavity using a flashlight or magnet.

NOTE: Replace O-ring if cracked, hard or brittle.

9. Remove and inspect O-ring from sump screen cover.

10. Install O-ring on cover.

11. Reinstall sump screen and cover. Tighten cap screws to specification.

Specification

Sump Screen Cover Cap Screws -Torque 55 N·m (40 lb-ft)

12. Fill transmission with oil at fill tube (A). Oil level should be between marks on the sight gauge.

System Capacities

9530/9630 Axles...87 L (23 gal)




1. OIL LEVEL CHECK PROCEDURE:

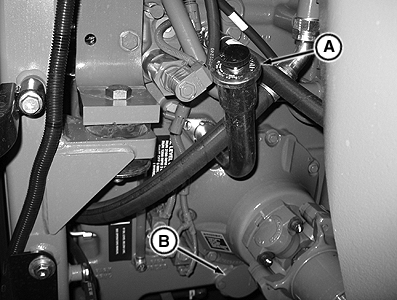

RXA0096843

Rear of Transmission


A-Transmission Fill Tube
B-Transmission Sump Screen Cover

RW29387,00000FE -19-06MAR09-2/3

IMPORTANT:

a. Poor shift quality and/or transmission damage may occur if the HY-GARD or JDM J20C specifications are not followed. To ensure proper shift quality, an oil meeting HY-GARD or JDM J20C specifications must be used.
b. Do not operate tractor if oil is not above mark (C) in sight gauge with engine off.

NOTE: Do not perform oil check within 8 hours of transporting tractor in 15th or higher gear.

Start tractor engine and warm transmission/axle oil to above 35°C (95°F). Use CommandCenter display to check transmission/axle temperature. (See CommandCenter Section).

2. After oil is at desired temperature, drive to a level surface.

3. Shift transmission lever to Park, set engine speed at 1200 rpm and run for 3 minutes.

NOTE: DO NOT step on brake pedal during this segment of the procedure to avoid additional oil flow to the axles and resulting in an inaccurate oil level check.

4. Reduce engine speed to slow idle, shut engine OFF, and wait 5 minutes.

5. Check oil level on sight gauge on rear of transmission. Oil level should be between marks (A) and (B).

RXA0099427

Three Line Powershift Transmission Sight Gauge and Labels

RXA0100692

Two Line Powershift Transmission Sight Gauge and Labels

RXA0100424

CommandCenter Transmission/Axle Oil Temperature Display


A-Top Oil Level Mark
B-Lower Oil Level Mark
C-Low Level Mark
D-Fill Tube

RW29387,00000FE -19-06MAR09-3/3
