Adjusting Steering Wheel

Telescope

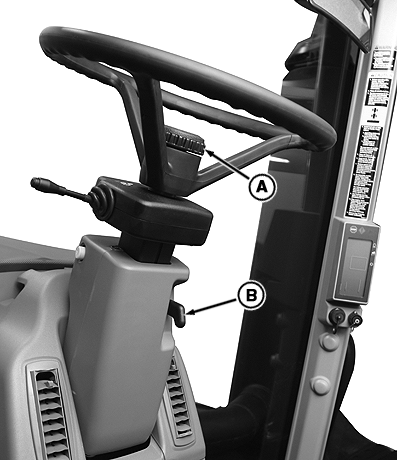

Rotate knob (A) counterclockwise to extend or retract the steering wheel. Rotate knob clockwise to lock.

Tilt

Pull up on lever (B) and move the steering column to the desired position. Release lever to lock.

Exit Position

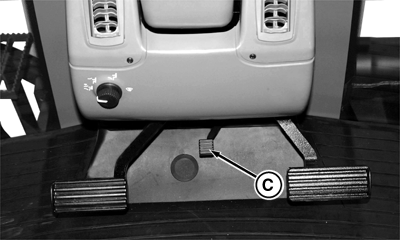

Push down on pedal (C) to permit steering column to automatically move up, out of operator's way for easy entry or exit.

Push down on pedal and pull down on steering wheel to return steering column back to previous setting.


A-Telescoping Knob
B-Tilt Lever
C-Column Pedal

RXA0090643
RXA0056230

RW29387,0000235 -19-30AUG06-1/1
