Changing Starting Fluid Cans

CAUTION: Do not use starting fluid near fire, sparks, or flames. Read the caution information on the container. Protect container against damage. Do not carry starting fluid cans inside cab.

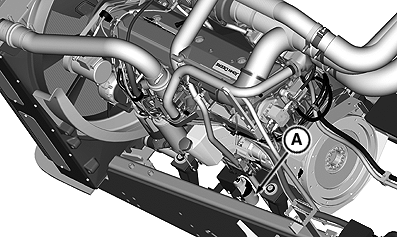

Starting fluid canister (A) is located on left side frame behind front engine mount.

Remove safety cap and plastic spray nozzle from new can.

Loosen canister holder to remove old can. Make sure seal remains in canister and is not stuck on old can.

Install new can and tighten canister holder.

IMPORTANT: Avoid drawing dust into engine. Always keep a starting fluid can in position, or clean bottom of canister holder and install bottom side up.

A-Canister Holder

RW29387,000025A -19-27MAR07-1/1
