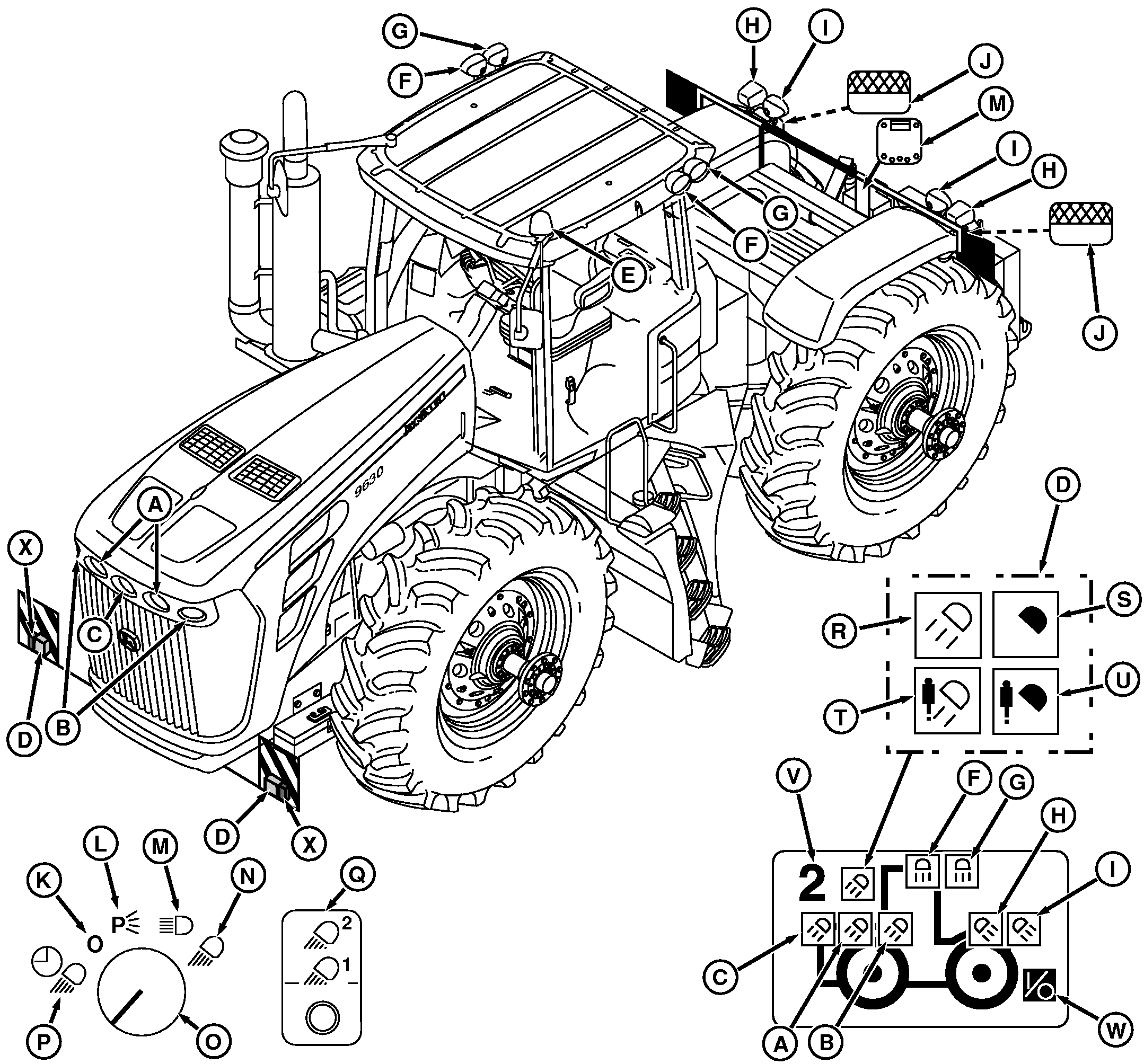

A-Road Lights, Front Inner, High/Low Beam
B-Field Lights, Front Outer (Standard or HID-Xenon)
C-Center Spot Light (Halogen or HID-Xenon)(Optional)
D-Headlights
E-Beacon Light-If Equipped
F-Field Lights, Cab Side Forward Roof

G-Field Lights, Cab Side Rear Roof
H-Field Lights, Rear Fender Outside (Halogen or HID-Xenon)
I-Field Lights, Rear Fender Inside (Halogen)
J-Red Brake/Tail Lights
K-Light Switch, OFF Position
L-Park Position Indicator

M-Road Position
N-Field Position 1, 2
O-Light Switch
P-Delayed Shutdown Position (If Equipped)
Q-Floodlight Switch (Positions, Field 2, Field 1 and Off)
R-Light Programmed ON
S-Light Programmed Off

T-Light Programmed On, Faulted
U-Light Programmed Off, Faulted
V-Indicator, Field Light Position
W-Programmable Indicator, ON/OFF
X-Amber Hazard/Turn Lights

RW29387,0000551 -19-24APR07-1/3

CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using Field Lights which could blind or confuse other drivers.

NOTE: Refer to PROGRAMMING FIELD LIGHTS for lighting set-up information. Programmable lighting display is at the lower right-hand corner of the previous picture. Programmable lights are A, B, C, D, F, G, H and I. Programmable lighting status is displayed as shown in R- U.

Standard Light Switch has four operating positions; Off (K), Park (L), Road (M) and Field (N). If equipped with the Egress Lighting option, the light switch will have a fifth position (P), that will activate the egress lighting option. Light Switch will operate regardless of key switch position.

Programmable display is shown for 10 seconds whenever light switch position is changed. If no programming changes are made, display returns to last screen shown.

O (OFF) Position (K):

In the OFF position, all clear-lens lighting is programmed OFF (all black indicators).

Park Position (L):

Turns on clearance lights, red tail lights and license plate light.

Road Position (M):

Turns on high/low beam road lights, red tail lights and license plate light.

Field Position (N):

Turns on all lights programmed for each Field position. Select Off, Field 1 or Field 2 positions utilizing Floodlight Switch (Q).

Floodlight Switch (Q)

Switch turns on all lights programmed for Field 1 or Field 2 positions or both off.

Programmable Lights (A, B, C, D, F, G, H and I)

As shown lights are ON (R), OFF (S), ON-Faulted (T) or OFF-Faulted (U). See PROGRAMMING FIELD LIGHTS for operating information.

Field Positions 1 and 2 (N):

Turns on clear-lens lighting (A, B, C, D, F, G, H and I) programmed for each Field position.

Automatic Battery Protection Feature

To prevent battery discharge if headlights or field lights are left on accidentally after shutting off engine. Electrical system will automatically start the following sequence:

• After 30 minutes have elapsed, lights will turn on and off 5 times
• After 5th time, lights will turn back on and stay lit for about 60 seconds
• After 60 seconds, lights will go off and stay off to prevent complete battery discharge

Using Delayed Egress Lighting (If Equipped)

Momentarily turn light switch (O) to delayed shut down position (P) to activate delayed egress lighting. Cancel egress lighting by momentarily turning switch clockwise to Road position and then OFF.

RW29387,0000551 -19-24APR07-2/3

Programmed lighting will remain ON for 90 seconds, then shut off automatically. Each additional time switch
