Checking Coolant Level

SERVICE INTERVAL - DAILY OR 10 HOURS



Engine stopped.

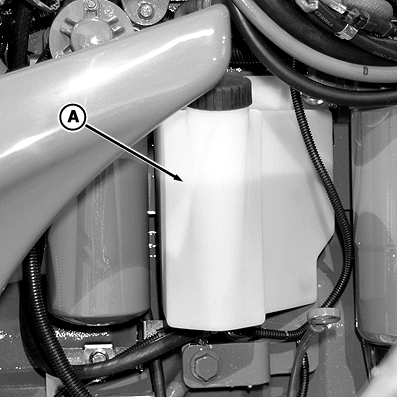

Check coolant level (A). Level should be at or slightly above lower mark with cold engine.

Add coolant to overflow tank if needed.


A-Coolant Level

RXA0088220

9330-9430-9530-9630 Tractors

RW29387,0000580 -19-10MAR07-1/1
