Changing Powershift Transmission/Standard Axle Oil-9330 and 9430 Tractors

SERVICE INTERVAL - 1500 HOURS



IMPORTANT: Prevent premature axle failure. Carefully follow drain and fill procedure.

NOTE: The powershift transmission only needs to be recalibrated if transmission shift characteristics change after transmission oil and filter change. See Powershift Transmission Calibration procedure in General Maintenance and Inspection Section.

1. Park tractor on level ground. Allow oil to cool for five minutes.

2. Remove the transmission oil fill cap.

3. Remove plug (A) from bottom of transmission.

4. Remove three drain plugs (B) and (C) and drain both front and rear axles.

5. Drain PTO drop box, if equipped.

6. Install all drain plugs.

7. Change transmission oil filter.


A-Transmission Drain Plug
B-Axle Drain Plug
C-Axle Drain Plugs

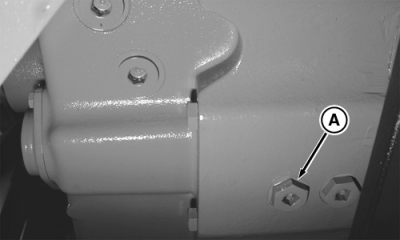

RXA0052015

Powershift Transmission Drain Plug

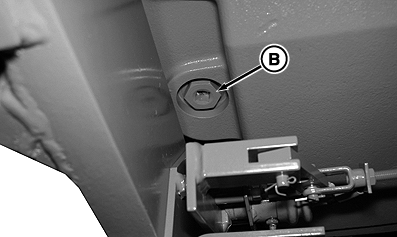

RXA0090328

Left Rear Axle Drain Plug Shown

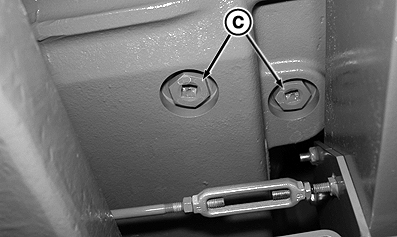

RXA0090330

Right Rear Axle Drain Plugs Shown

RW29387,00005AE -19-09MAR09-1/3

8. Remove sump screen cover (B) cap screws. Remove sump screen and clean with solvent.

9. Inspect for debris in sump screen cavity using a flashlight or magnet.

NOTE: Replace O-ring if cracked, hard or brittle.

10. Remove and inspect O-ring from sump screen cover.

11. Install O-ring on cover.

12. Reinstall sump screen and cover. Tighten cap screws to specification.

Specification

Sump Screen Cover Cap Screws -Torque 55 N·m (40 lb-ft)

IMPORTANT: To ensure proper shift quality, an oil meeting HY-GARD or JDM J20C specifications must be used.

Shift quality problems and/or transmission damage may occur if the HY-GARD or JDM J20C specifications are not followed.

13.System Capacities

110 mm Axles Without PTO ...170.5 L (45 gal)
110 mm Axles With PTO ...174.1 L (46 gal)





Remove axle DR plug (E) and (F) for filling purposes.

14. Fill transmission with oil at fill tube (A). Oil level should be between marks (C) on sight glass.

1. OIL LEVEL CHECK PROCEDURE:


A-Transmission Fill Tube
B-Transmission Sump Screen
C-Full Oil Level Mark
D-Low Oil Level Mark
E-Front Axle Drain Plug
F-Rear Axle Drain Plug

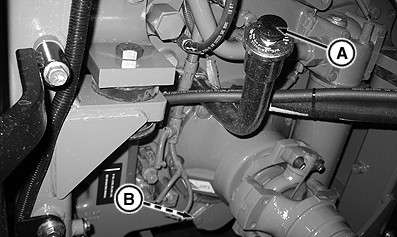

RXA0096809

Rear of Transmission

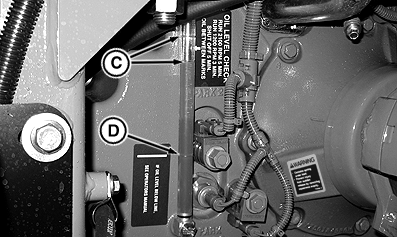

RXA0096810

Powershift Transmission

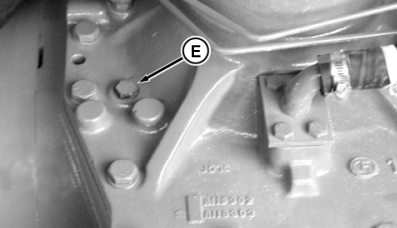

RXA0096844

Back side of Front Axle

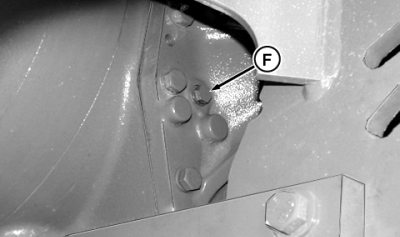

RXA0096845

Front side of Rear Axle

RW29387,00005AE -19-09MAR09-2/3

IMPORTANT:

a. Poor shift quality and/or transmission damage may occur if the HY-GARD or JDM J20C specifications are not followed. To ensure proper shift quality, an oil meeting HY-GARD or JDM J20C specifications must be used.
b. Do not operate tractor if oil is not above mark (C) in sight gauge with engine off.

NOTE: Do not perform oil check within 8 hours of transporting tractor in 15th or higher gear.

Start tractor engine and warm transmission/axle oil to above 35°C (95°F). Use CommandCenter display to check transmission/axle temperature. (See CommandCenter SECTION).

2. After oil is at desired temperature, drive to a level surface.

3. Shift transmission lever to Park, set engine speed at 1200 rpm and run for 3 minutes.

NOTE: DO NOT step on brake pedal during this segment of the procedure to avoid additional oil flow to the axles and resulting in an inaccurate oil level check.

4. Reduce engine speed to slow idle, shut engine OFF, and wait 5 minutes.

5. Check oil level on sight gauge on rear of transmission. Oil level should be between marks (A) and (B).

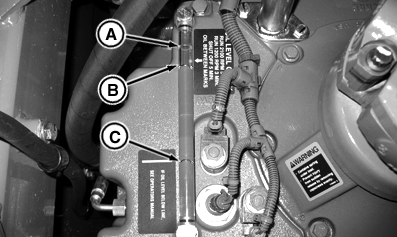

RXA0099427

Three Line Powershift Transmission Sight Gauge/Labels (Early Version)

RXA0100860

Three Line Powershift Transmission Sight Gauge/Labels (Late Version)

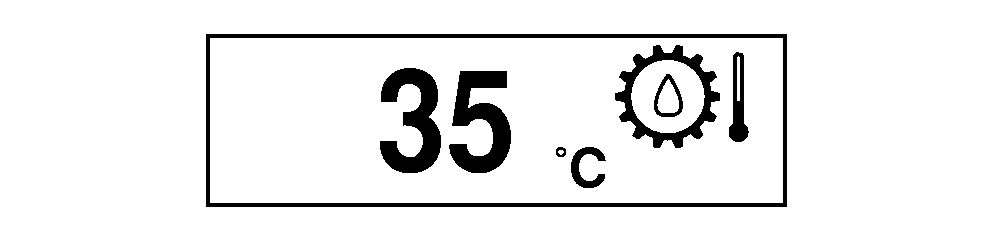

RXA0100424

CommandCenter Transmission/Axle Oil Temperature Display


A-Top Oil Level Mark
B-Lower Oil Level Mark
C-Low Level Mark
D-Fill Tube

RW29387,00005AE -19-09MAR09-3/3
