Checking Engine Oil Level

Remove dipstick (A) and check oil level with tractor on level ground before starting tractor. Oil level should be between the "ADD" and the top of the cross-hatch area on dipstick.

NOTE: Cross-hatch area (C) is considered FULL.

Engine oil level indicator is a dipstick with a "crosshatch" area with a "safe" zone. After tractor has been parked on level ground overnight is best time to check oil level. Anywhere in the dipstick crosshatch safe zone is considered full.

Remove fill cap (B) if oil is required. (See DIESEL ENGINE OIL in the Fuels, Lubricants and Coolant Section.)

Do not operate engine with oil level below the "ADD" mark on dipstick.

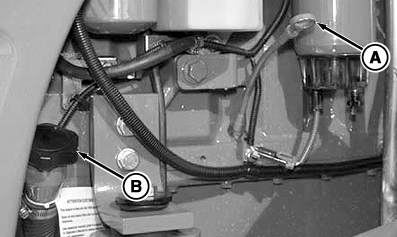

A-Dipstick
B-Fill Cap

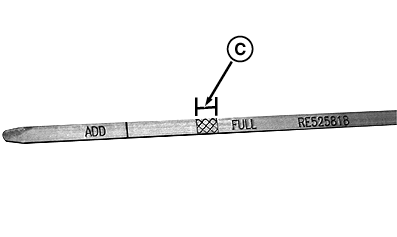

C-Cross-Hatch
