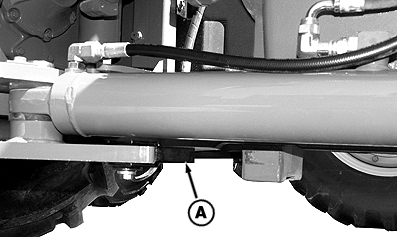

Using Steering StopsNOTE: Steering Stops of 3°, 5°, and 10° are available through your John Deere Dealer. The correct steering stops are installed at the factory with tire option ordered. IMPORTANT: Steering stops (A) must be installed if tractor is equipped with dual tires when outer tire treads are greater than 3343 mm (131.6 in.). Check clearance by turning steering wheel to full left and full right positions after installing steering stops and adjusting wheel treads. Tighten steering stop retaining cap screw to 90 N·m (66 lb-ft). |
|
| Tires | Steering Stop | Tread Spacing Range | |
|---|---|---|---|
| Inner Tire | Outer Tire | ||
| 620/70R42 Duals | 5° | 1689-2062 mm (66.5-81 in.) |
3241-3614 mm (127.6-142 in.) |
| 620/70R46 Duals | 10° | 1689-2062 mm (66.5-81 in.) |
3241-3614 mm (127.6-142 in.) |
| 710/70R38 Duals | 5° | 1783-1935 mm (70-76 in.) |
3472-3625 mm (137-143 in.) |
| 710/70R42 Duals | 10° | 1783-1935 mm (70-76 in.) |
3472-3625 mm (137-143 in.) |
| 800/70R38 Duals | 10° | 1876-2188 mm (74-86 in.) |
3763-4075 mm (148-160 in) |
