Using Delayed Egress Lighting (If Equipped)
NOTE:
To cancel egress lighting turn switch back to timer position.
Egress (Delayed Shutdown) Position:
-
Programming egress lighting is the same as field lighting with all lights selectable. Only operator selected lights will come ON when switch knob is moved to Egress (Delayed Shutdown) position.
-
To activate egress lighting, momentarily turn light switch (A) counterclockwise from OFF position. Cancel egress lighting by momentarily turning switch counterclockwise a second time or clockwise to Road position and then OFF.
-
Programmed lighting will remain ON for the number of seconds entered, then shut off automatically.
-
Cycling the light switch into egress position several times will increase the delay time. Each successive cycle will add 30 seconds with a maximum of 180 seconds.
|

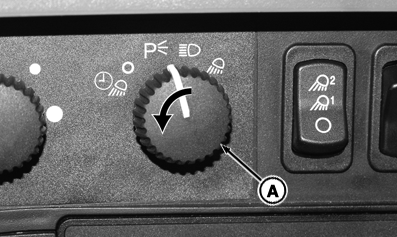

A-Light Switch
|
