Operating Hazard Lights

CAUTION: Always use road lights and hazard warning lights when operating tractor on a road or highway at night OR during the day. Hazard warning lights alert other vehicles of your extended tractor width.

Hazard warning lights operate with hazard light switch "ON" (A) or light switch (B) in "road" position.

Hazard warning lights operate regardless of key position.

When turn signal is activated, hazard warning light on turning side flashes faster, while opposite side glows solid.

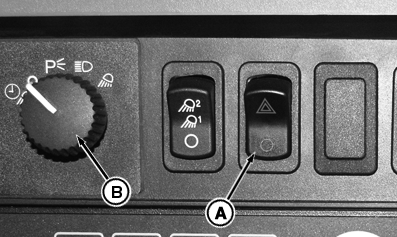

A-Hazard Light Switch
B-Light Switch

RW29387,00005C7 -19-26APR07-1/1
