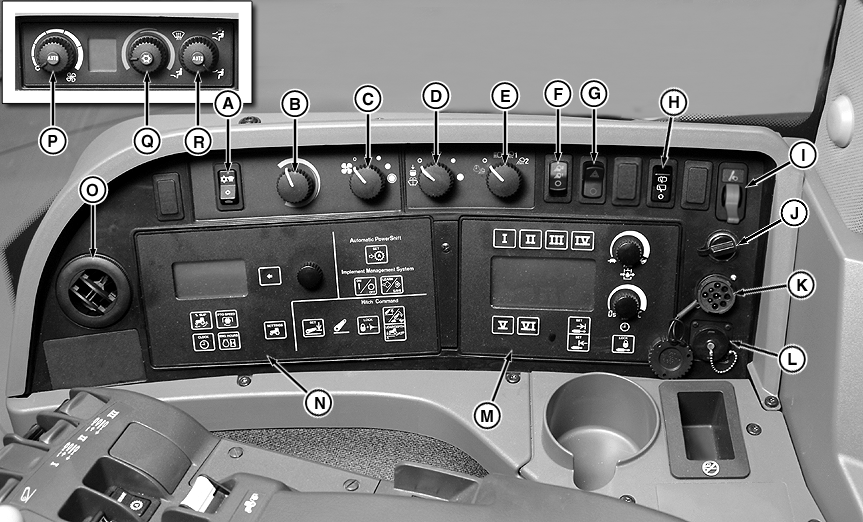

A-Compressor Switch * (If Equipped) B-Temperature Control Knob * (If Equipped)
C-Blower Motor Control Switch * (If Equipped) D-Front Wiper Switch E-Light Switch F-Floodlight Switch G-Hazard Light Switch H-Rear Wiper Switch (If Equipped)
I-Secondary Brake Switch J-Power Plug K-Diagnostic Connector L-Convenience Outlet M-TouchSet Control Panel N-CommandCenter™ O-Air Vent
P-Blower Motor Control * (If Equipped) Q-Temperature Control * (If Equipped) R-Air Flow Mode Control * (If Equipped)
* Tractors will have either a standard heating air conditioning unit [controls (A-C)] or ClimaTrak controls (P-R).
CommandCenter is a trademark of Deere & Company
RW29387,00005CC -19-17APR07-1/1
