Front Weight Frame

IMPORTANT: The front frame weight support is not intended to be used for pushing other tractors or implements and should not be used for securing chains or cables as tow points.

IMPORTANT: A field installed tow cable kit is available through John Deere Parts. If tow cable kit is installed on a tractor without front weight support, then support should also be ordered through service parts to attach cable onto front of tractor frame.

The front weight support extends out in front of the tractor and has the following effect on front axle weight and rear axle weight because of weight transfer effect:


  Actual Weight Weight Transfer to Front Axle Weight Reduced From Rear Axle
Front Weight Frame 138 kg (304 lb) +207 kg (+456 lb) -69 kg (-152 lb)
22 Weights and Support 1179 kg (2600 lb) +2058 kg (+4538 lb) -879 kg (-1938 lb)
Total 1317 kg (2904 lb) +2265 kg (+4994 lb) -948 kg (-2090 lb)

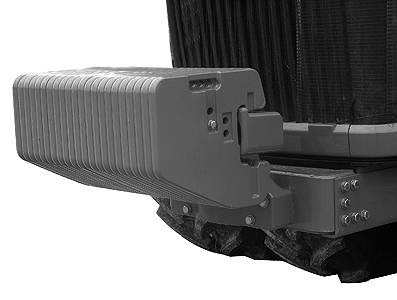

RXA0096195

Front Weight Support With Weights

OU1092A,00000BE -19-15OCT07-1/1
