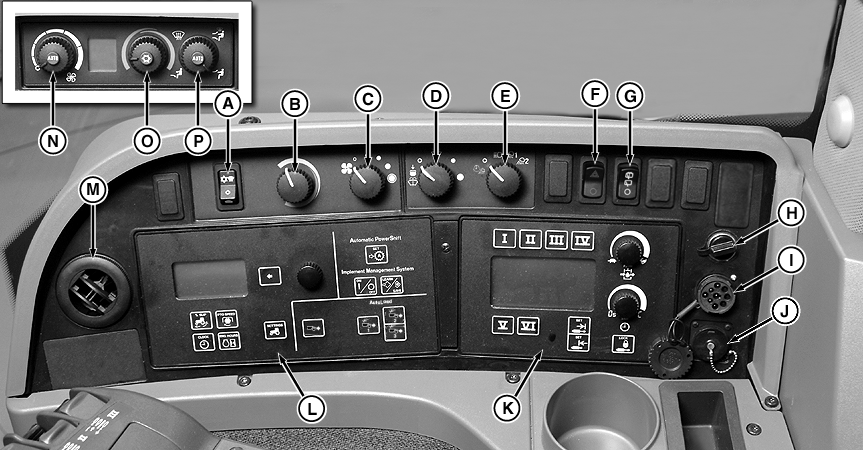

A-Compressor Switch * (If Equipped) B-Temperature Control Knob * (If Equipped)
C-Blower Motor Control Switch * (If Equipped) D-Front Wiper Switch E-Light Switch F-Hazard Light Switch G-Rear Wiper Switch (If Equipped)
H-Power Plug I-Diagnostic Connector J-Convenience Outlet K-TouchSet Control Panel L-CommandCenter™ M-Air Vent
N-Blower Motor Control * (If Equipped) O-Temperature Control * (If Equipped) P-Air Flow Mode Control * (If Equipped)
* Tractors will have either a standard heating air conditioning unit, controls (A-C) or ClimaTrak controls (N-P).
CommandCenter is a trademark of Deere & Company
