Long Drawbar Support Load Limitations-If Equipped

IMPORTANT: If tractor drawbar was installed, certain heavy equipment can place excessive strain on drawbar. Strain is greatly increased by speed and rough ground. Maximum static vertical load on drawbar should not exceed 2043 kg (4500 lb).

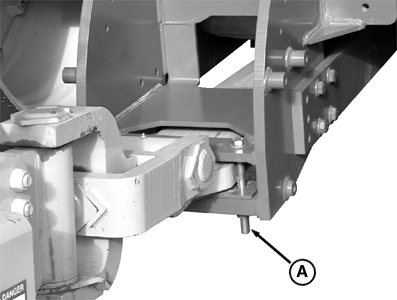

Tighten drawbar locking bolts and shims (A).

RXA0066212


A-Bolts

Item Measurement Specification
Drawbar Locking Bolts

Bolt

Torque 610 N·m (450 lb-ft)

IMPORTANT: Drive slowly when moving heavy draft loads.

OU1092A,00001C6 -19-15MAY07-1/1
