IMPORTANT: A recalibration may be required to get a laser scraper to operate with SCU controller.

If this SCU error occurs "Not Calibrated", contact your John Deere dealer to calibrate.

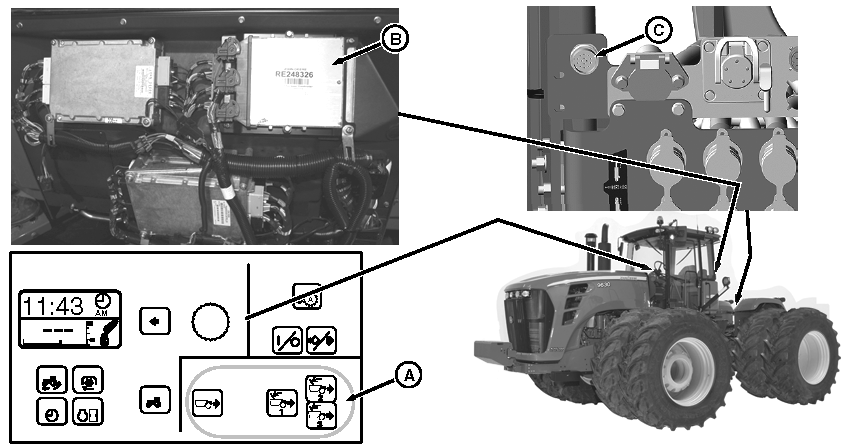

Operating characteristics of AutoLoad:

• AutoLoad is IMS compatible.

• Recommend use of dual beam radar sensor for maximum operating performance.
• AutoLoad will function without radar. If the radar signal is lost, an error code will display and AutoLoad will function at a degraded level.
• Radar should be checked regularly and clear of dirt and debris.

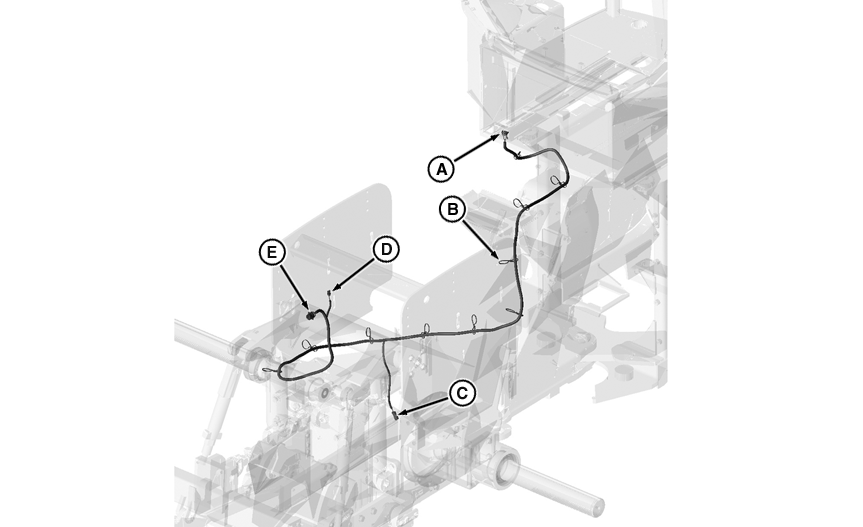

NOTE: Tow cable must be mounted on the right side frame to avoid interference and reduced performance of dual beam radar.

AutoLoad is a trademark of Deere & Company
