A-SCV I
B-SCV III

C-SCV V
D-Display Graph

E-Valve Number

F-SET

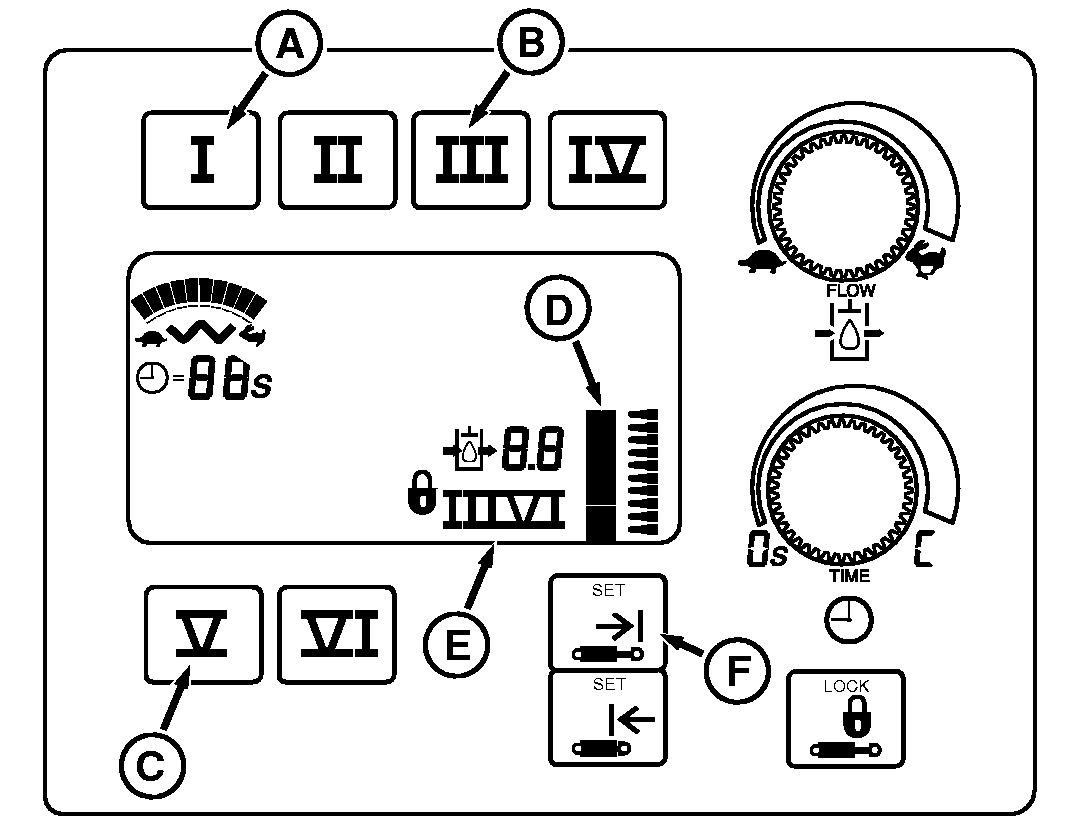

The tractor has the ability to store two scraper positions for each scraper, called the upper and lower set points. These set points allow the scraper(s) to be quickly returned to preset positions.

These positions are set using the SCV setup panel as shown above.

To set the upper set point, position the scraper at the highest desired position (example: transport height). Then select the SCV for which you are storing the set point (buttons are shown to the right). Only SCVs I (A), III (B) and V (C) have set points.

After selecting the SCV, the corresponding valve number (E) will be displayed. If this valve number is incorrect, re-select the valve.

After selecting the SCV, press the extend "SET" button (F).

This will store the upper set point.

As a result, the position display graph (D) may change slightly.

Once complete, the new upper set point is ready to use.

To change the upper set point once set, simply repeat the above procedure.
