Recommended Ballast-Scraper/Ag Combination Tractor With Radial Tires

NOTE: Weights listed are based on 710/70R42 dual tires and full tank of fuel.

Tractors for scraper (without dolly wheels) application should be ballasted between 65 to 75% Front Weight Split.

Tractors for agricultural (drawn tillage or scraper with dolly wheels) application should be ballasted at 55% Front Weight Split.

1. The agriculture tractor application requires switching front outside duals with rear outside duals.

2. Then move front quik-tatch weights to rear weight bracket.

Dual Purpose Tractor Diagram

Application Approximate Weight % Front/Rear Weight Split

Scraper Tractor 21681 kg (47798 lb) 71/29

Agricultural Tractor 21590 kg (47598 lb) 57/43





A-One 68 kg (150 lb) Cast Weight Support
B-Three 204 kg (450 lb) Outer Dual Weights (Each Side)
C-One 75 kg (165 lb) Starter Dual Weight (Each Side)
D-One 635 kg (1400 lb) Inner Drive Weight (Each Side)
E-One Frame Weight Bracket and Front Weight Support with Twenty Two Quik-Tatch Weights
F-One Frame Weight Bracket and Front Weight Support (Less Front Weights)
G-Rear Frame Weight Support with Twenty Quik-Tatch Weights

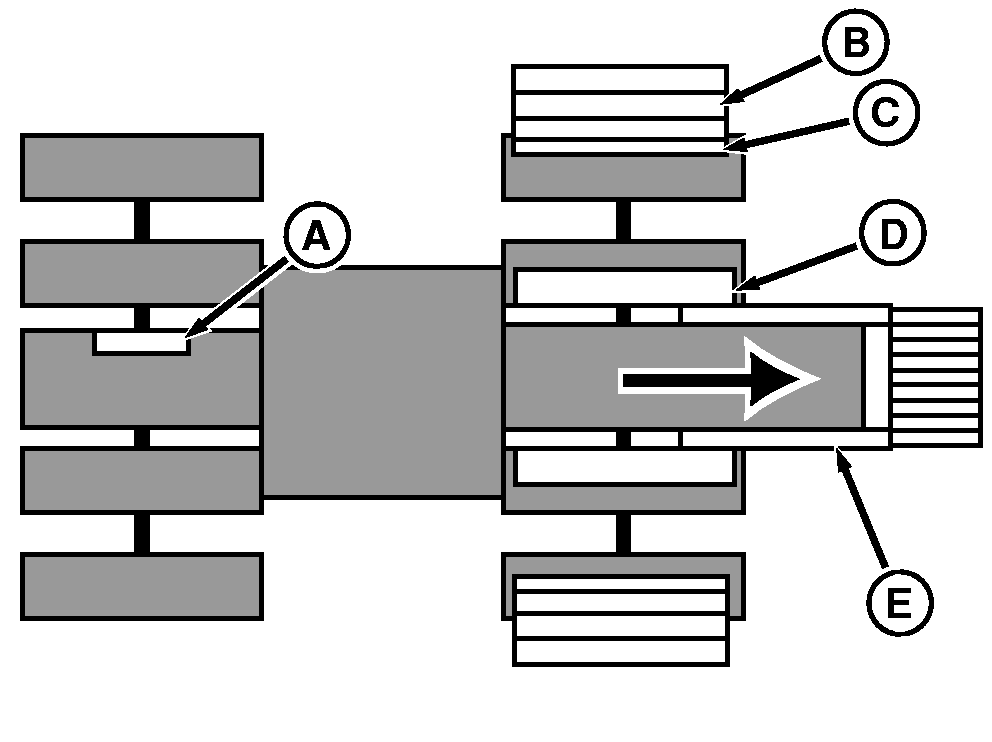

RXA0064880

Scraper Version

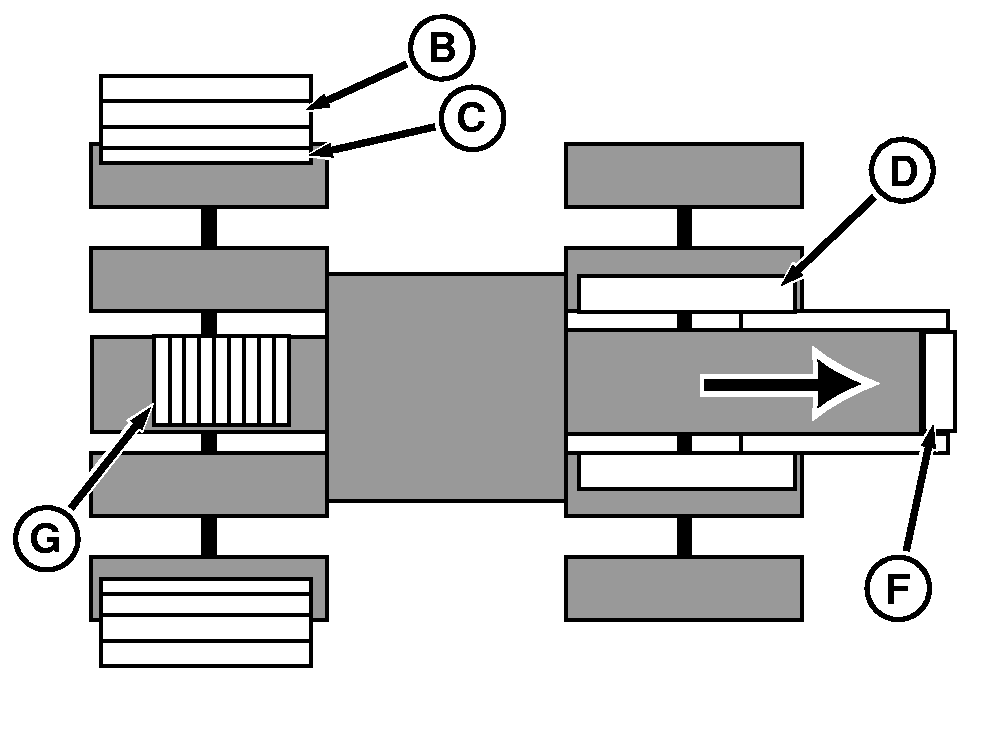

RXA0093453

Agricultural Version

OU1092A,00001EB -19-29NOV07-1/1
