For applications where additional front axle ballast is required.

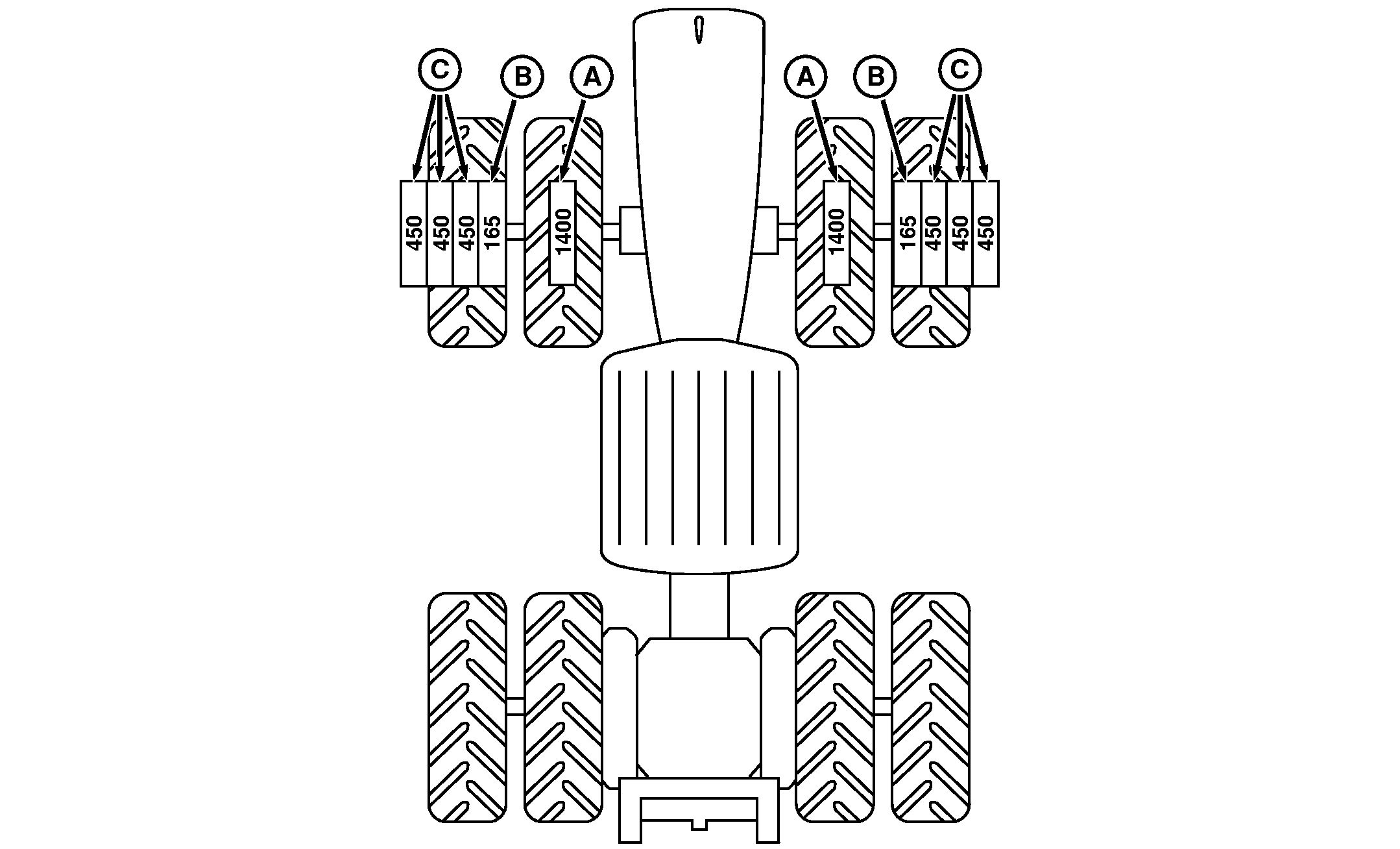

This ballast package includes one pair of 636 kg (1400 lb.) weights (A) to the inside of the inner wheel on the front axle, and one pair of 75 kg (165 lb.) starter weights (B) and three pair of 204 kg (450 lb.) weights (C) on the outside dual wheels on the front axle.

This combination will add 2644 kg (5830 lb.) to the total weight of the tractor.

Approximately 65% front 35% rear weight split.

The lb/hp of the tractor will vary, depending on the model of tractor.

OU1092A,00001EF -19-24OCT07-1/1
