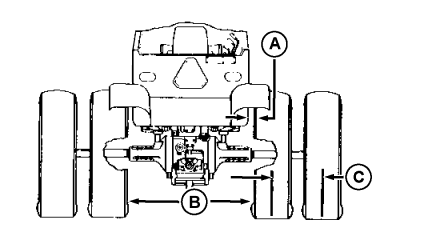

IMPORTANT: Tires must have at least 25 mm (1 in.) clearance (A) with fenders. Clearance (B) between tires must be at least 1041 mm (41 in.), with tires equal distance from center line.

IMPORTANT: With dual tires, refer to following chart for minimum spacing between tires (C). (See Using Radial and Bias-Ply Tires for more information.)

Steering stops may be required for some tread settings.

Extremely wide wheel spacings provide higher loads for axle bearings and shafts. Try to minimize overall tread width.

OU1092A,00001F2 -19-08NOV06-1/1
