Check High Flow Hydraulic Accumulator

Start tractor engine.

Lift scraper to full raised position.

Turn engine off.

Turn key on, with engine stopped.

Activate SCV switch to lower scraper to ground.

Scraper should lower and rest on ground.

If high flow accumulator (A) check fails, have your John Deere Dealer recharge or replace immediately.

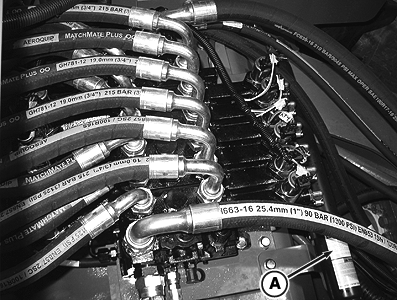

A-High Flow Accumulator

OU1092A,00001F8 -19-18JUL08-1/1
