Check Standard Flow Hydraulic Accumulator

Start tractor engine.

Lift scraper to full raised position.

Turn engine off.

Turn key on, with engine stopped.

Activate SCV switch to lower scraper to ground.

Scraper should lower and rest on ground.

If standard flow accumulator (A) check fails, have it recharged or replaced immediately by your John Deere Dealer.

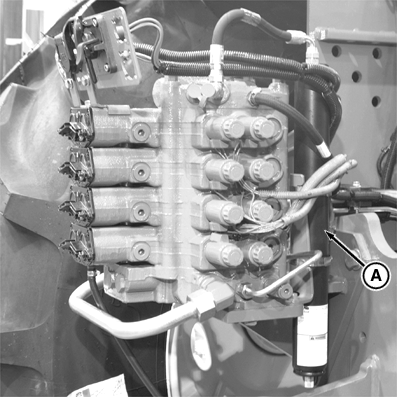

A-Standard Flow Accumulator

OU1092A,00001F9 -19-08NOV06-1/1
