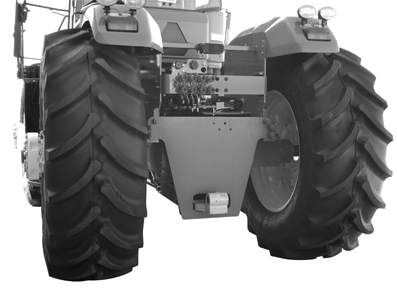

Checking Scraper Drawbar Support Bolts |
|
|
|

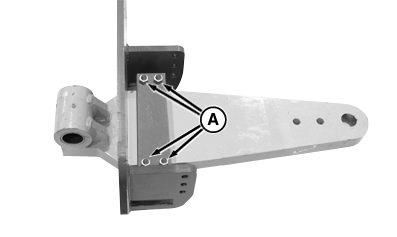

Tighten drawbar support bolts (A). IMPORTANT: Check and retorque drawbar support bolts after first 10 Hours, 50 Hours and 100 Hours of scraper operation.
|
| Drawbar Support Cap Screw Torque Specification | |
|---|---|
| Locking Bolts (A) | 430 N·m (320 lb-ft) |

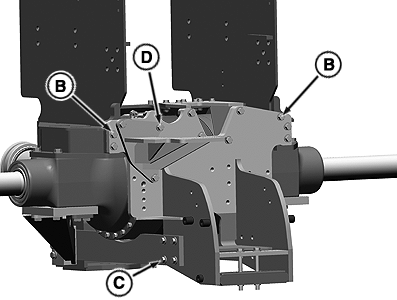

| Drawbar Support Cap Screws to Frame (B) | 610 N·m (450 lb-ft) |
| Support Stabilizer Cap Screws to Drawbar Support (C) | 610 N·m (450 lb-ft) |
| SCV Bracket Cap Screws to Drawbar Support (D) | 610 N·m (450 lb-ft) |
| SCV Stack Cap Screws to SCV Bracket (Not Shown) | 125 N·m (92 lb-ft) |
| SCV Line Clamp Screw (Not Shown) | 30 N·m (22 lb-ft) |
|
OU1092A,00001FA -19-16OCT08-1/1 |
