Setting Startup Gear

Press Setting Switch (A).

Display will read:

English Translation (if applies) Implement Sel Implement Sel RPTO Engage (If Equipped) RPTO Engage Transmission Transmission Decel Switch Decel Switch

Using Command Dial (B), scroll down to Transmission , then press Select Switch (C).

Display will read:

English Translation (if applies) Auto Shift Auto Shift Fwd Start Gear Fwd Start Gear Rev Start Gear Rev Start Gear Back Back

To change forward start gear using Command Dial, scroll down to Fwd Start Gear and press Select Switch. Rotate Command Dial clockwise to increase the gear displayed or counterclockwise to decrease the gear displayed. A forward start gear can be selected between 1 and 13.

To change reverse start gear using Command Dial, scroll down to Rev Start Gear and press select switch. Rotate Command Dial clockwise to increase the gear displayed or counterclockwise to decrease the gear displayed. A reverse start gear can be selected between 1 and 3.

When the desired number for the gear is displayed, press Select Switch.

NOTE: New startup gear will not be locked into system memory until engine is turned Off, then restart tractor.

Turn Key switch OFF, after engine is shut off, restart engine.

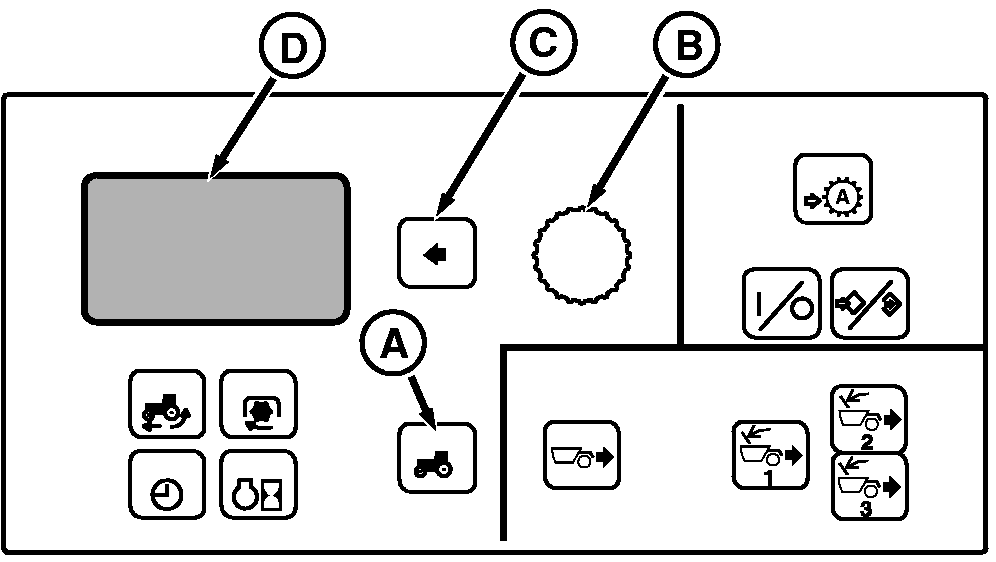

RXA0091378

CommandCenter

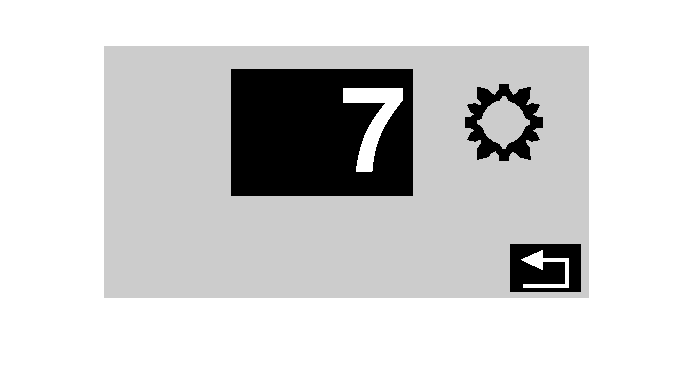

RXA0091171

Forward Start Gear Display


A-Vehicle Settings Switch
B-Command Dial
C-Select Switch
D-Display

OU1092A,000020F -19-09NOV06-1/1
