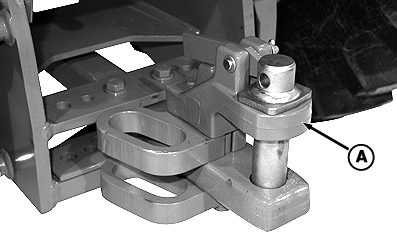

Using Clevis Assembly-Category 4 DrawbarClevis assembly (A) must be attached only to the top of the drawbar. If towed implement also has a clevis assembly, insert pin only through tractor drawbar. DO NOT insert pin through all four members.
|
|
RW29387,0000011 -19-15MAY07-1/1 |
