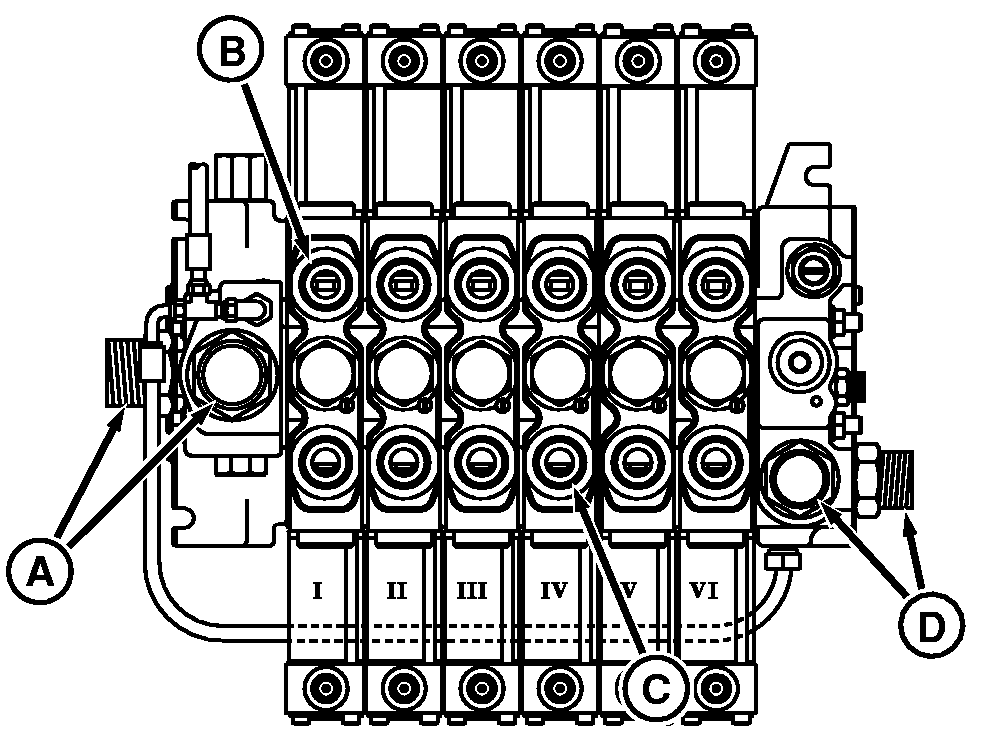

Hydraulic Component Identification-High Flow Hydraulics


A-Pump Supply Ports
B-Extend Ports
C-Retract Ports
D-Return Flow Ports

RXA0097829

Hydraulic Component Identification - High Flow Valves

RXA0097830

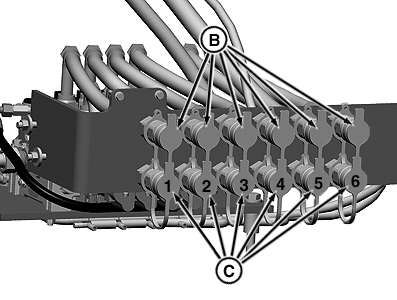

High Flow Couplers

RW29387,000002F -19-24APR08-1/1
