Using External Raise and Lower Switches

causym CAUTION: To prevent injury or damage caused by tractor movement, be sure transmission is in PARK position before using external raise and lower switches. Stay clear of interference points when using external raise and lower switches.

When external switches (A) are pressed hitch moves slowly, but slowly increases speed the longer hitch switch is held down.

Press and hold external switches (A) to raise or lower hitch. Hitch moves at slow speed when using external switches.

NOTE: Hitch command lever cannot be used simultaneously with external raise/lower switch.


A-External Raise/Lower Switches

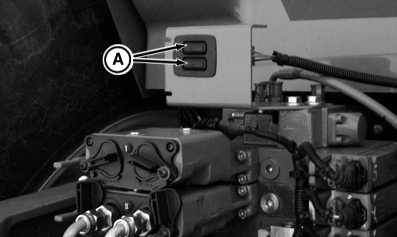

RXA0097037

Valve Stack Mounted Switches (If Equipped)

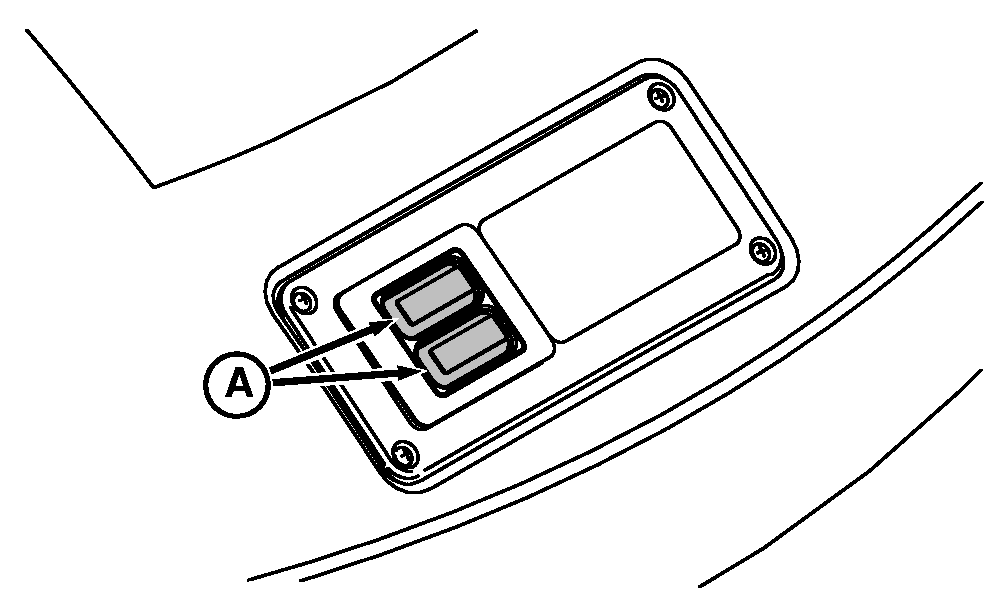

RXA0068228

Fender Mounted Switches (If Equipped)

OURX935,0000006 -19-25JUL08-1/1
